Zigbee 4 Channel Switch Module Relay makes your home smarter
The Switch is a ZigBee-enabled Interlock/Jog/self-locking smart switch that is compatible with different hubs.The ZigBee3.0 protocol gets the switch and ZigBee bridge to be paired in a quick way. The switch is safer to use in you home that is promised by the fire-proof and flame-retardant shell. Additionally, AES-128 encryption ensures the safety is extended to data device privacy, no worry about privacy disclosure of your device. It can be as a Zigbee router to help transmit the ZigBee signal to ensure a stable connection when multiple Zigbee devices are used for your home.
Checklist before using the device
1) Your smartphone or tablet has been connected to a 2.4G WiFi capable of accessing the Internet (5G WiFi is not currently supported)
2) The mobile phone or tablet using the Android system must be an Android version above 4.0
3) If your wireless router has set MAC address filtering, please enter the router background and turn off the MAC filtering function
4) Must be used in conjunction with Zigbee gateway.You need to have a Zigbee gateway.Try to be close to the Zigbee gateway when pairing.
Description:

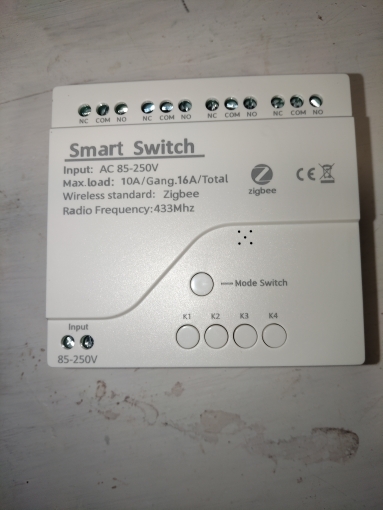

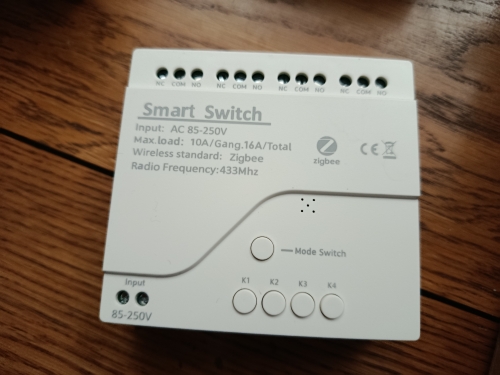

Working voltage: AC/DC 7-32V or AC 85-250V.
ZIGBEE smart switches only output signals, not voltages.

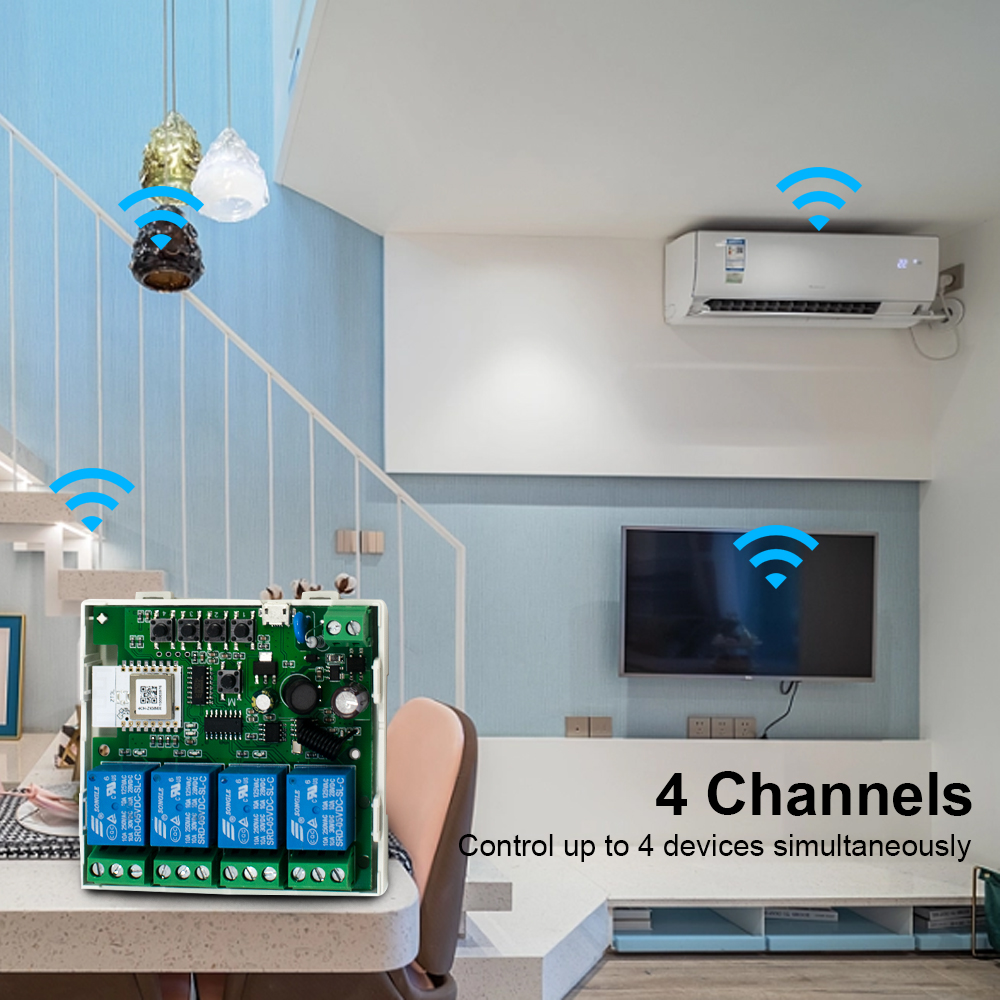

Number of channels: 4.
Radio frequency: 433MHz.
Zigbee standards/ protocol :zigbee 3.0.
Max load : 10A/Gang 16A/Total.
Special Notice:

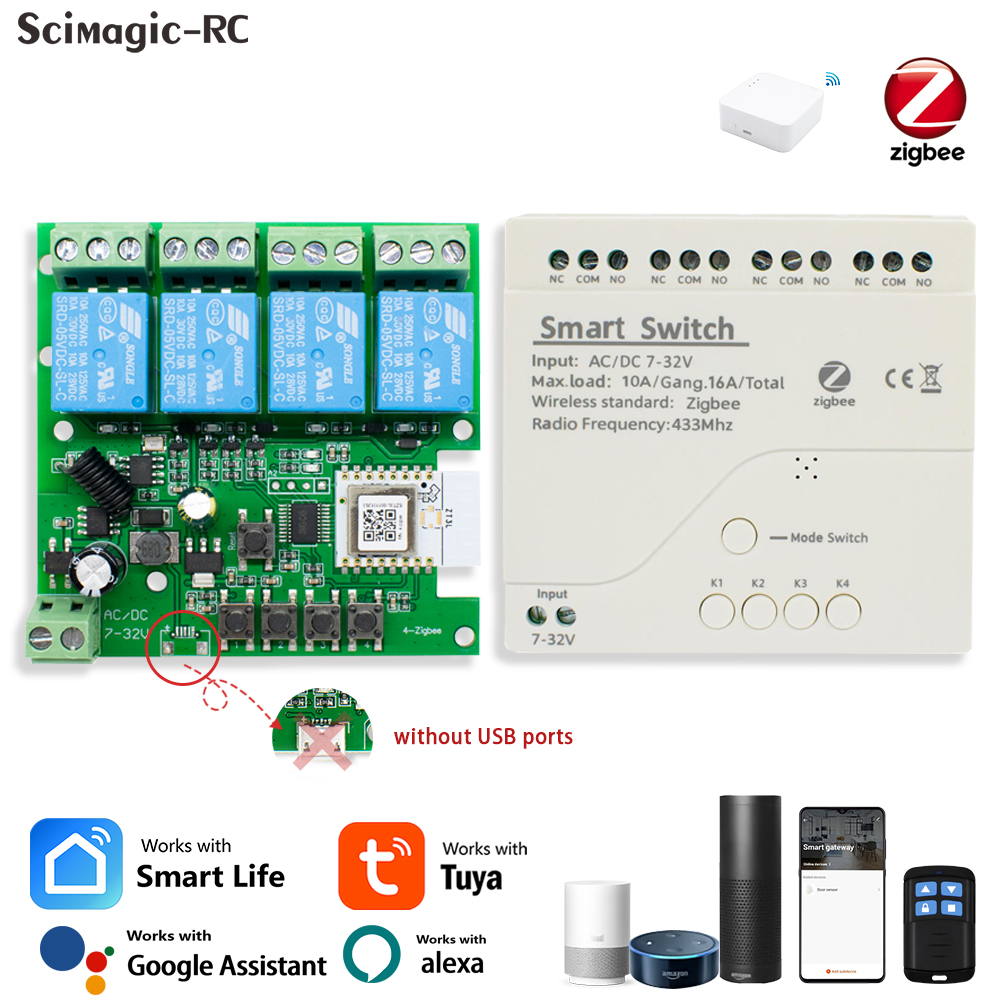

Because USB 5V input poses a security risk.
The latest version does not support USB 5V input.

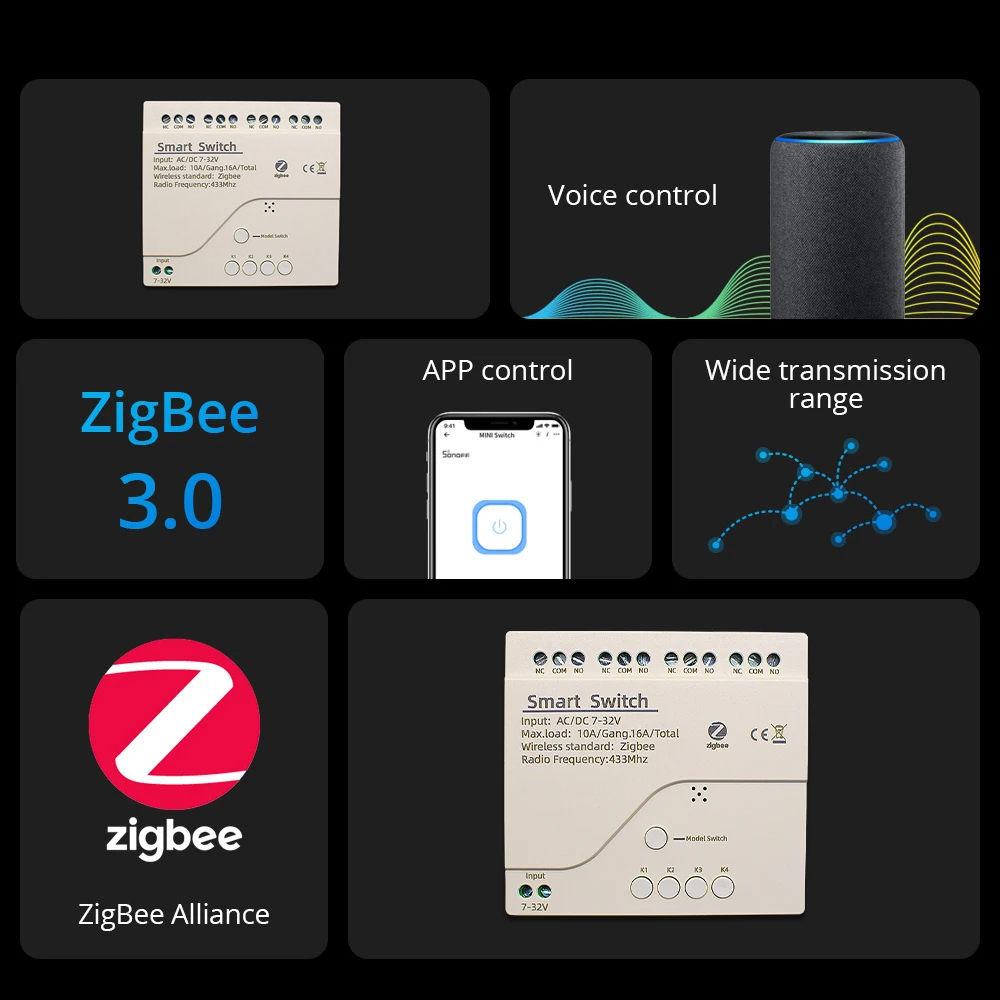

Why Choose Zigbee Smart Switch Module?
1. Low power consumption
2. ZigBee responds quickly
3. Large network capacity: A Zigbee network with a star structure can accommodate up to 254 slave devices and one master device, and a maximum of 100 ZigBee networks can exist in one area at the same time, and the network composition is flexible.
4. Longer connection range: farther than devices directly connected to WiFi
5. Safe and reliable
Function
【APP Remote Control】
Require Tuya Zigbee Hub. You can check the working state of the device in Tuya APP anywhere and anytime.
【RF433mhz Control】
The device can be controlled by the RF433mhz Remote Controller, Only compatible with 433 Learning code remote control.
【Mobile Phone Control】
Require Tuya ZigBee Hub ,when you go outside or at home, your smart phone could control the device by 2.4Ghz WIFI or 2G/3G/4G Mobile Network.
【Voice Control】
Require Tuya Zigbee Hub, you could voice control the device by Alexa/Google Assistant.
【Smart Linkage】
Cooperate with other zigbee products to achieve intelligent linkage. For example, with zigbee door magnetic sensing, to realize the light on immediately after opening the door
【Group Control】
Unified management of individual devices using gateways
【Timing function】
Lying in bed without turning off the lights fell asleep, it does not matter, the wall switch timing function to the point of turning off the lights, from the lights off do not worry about.
【Three Working Modes】
Self-locking, Interlocking, Jog
What can I use it for?
*Connect a light, remotely control the switch of the light.Connect a light, remotely control the switch of the light, and can also switch on and off regularly
19:00 On 21:00 Off
*Open your curtains regularly 7:00
*Change the water for the fish tank regularly
*Use mobile phone or voice control Garage door switch
*Control your heater remotely
*And your coffee machine
*Connect a water pump, remote control or timer switch
More functions waiting for you to discover. DIY
Features:
*Supports zigbee gateway control.
*Supports manage numerous zigbee smart switches on one smart phone.
*Supports status tracking: it will show device status timely in the Tuya/Smart Life
*Supports remotely turn on/off household appliances, such as light, electric kettle, electric rice cooker, electric curtain, access control etc.
*Supports enabled 8 time schedule/countdown/ cycle timers for each device.
*Voice Control: Compatible perfectly with “Amazon” Alexa, Google Assistant.
*RF Control: Can be used with RF 433MHz learning code remote control.
*Supports status tracking: device status timely feedback to the APP.
Three Working Modes
Use for
1.Remotely give a pulse signal to turn on/off Lights,Lamps and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access.
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse.

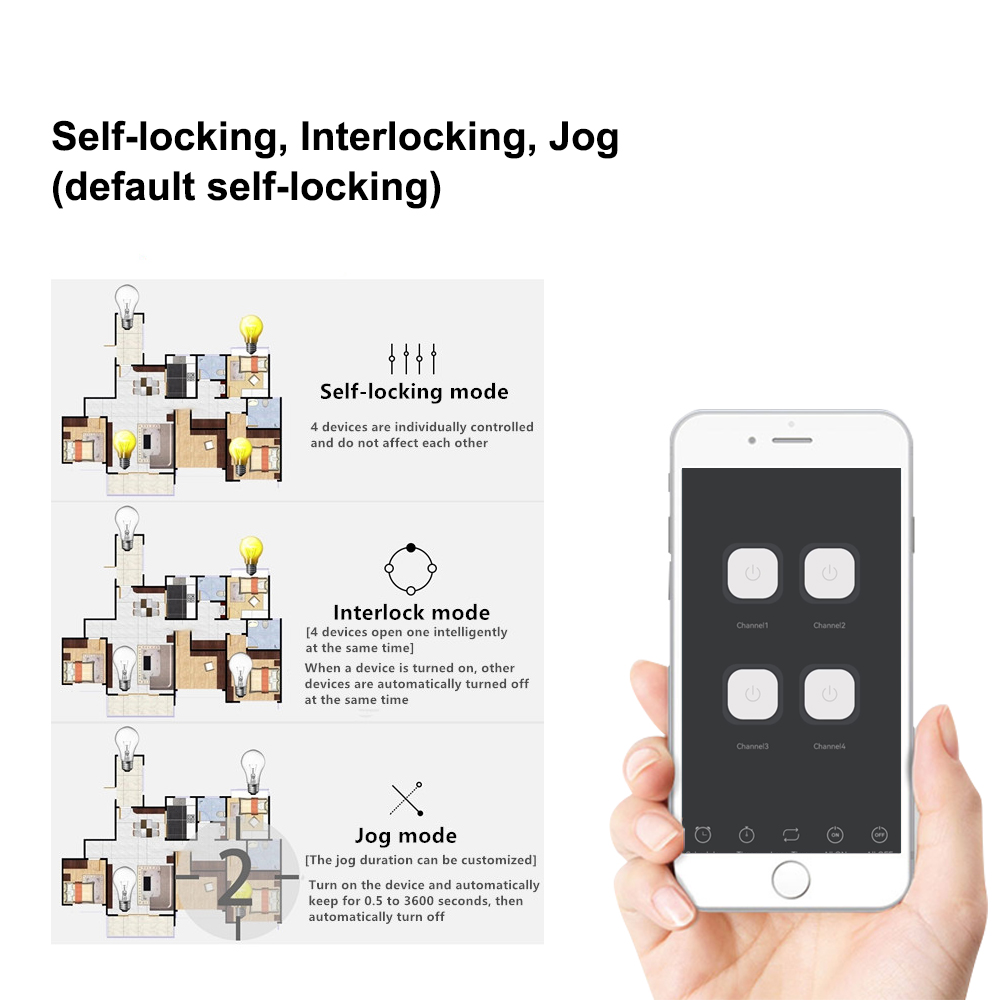

Introduction to working modes
1.Inching mode : Switch on channel 1,channel 1 will be automatically closed after 1 seconds . The inching time can set in the APP
Other channel is same to the channel 1 . you can also change the inching time on the APP and need enter into the self-lock or interlock mode
2.Self-locking : each channel could be switched on/off seperately .
3.Interlocking mode : Switch on any channel , other channels will be switched off automatically .
If you need to change the mode,you need to press the mode button
