产品描述

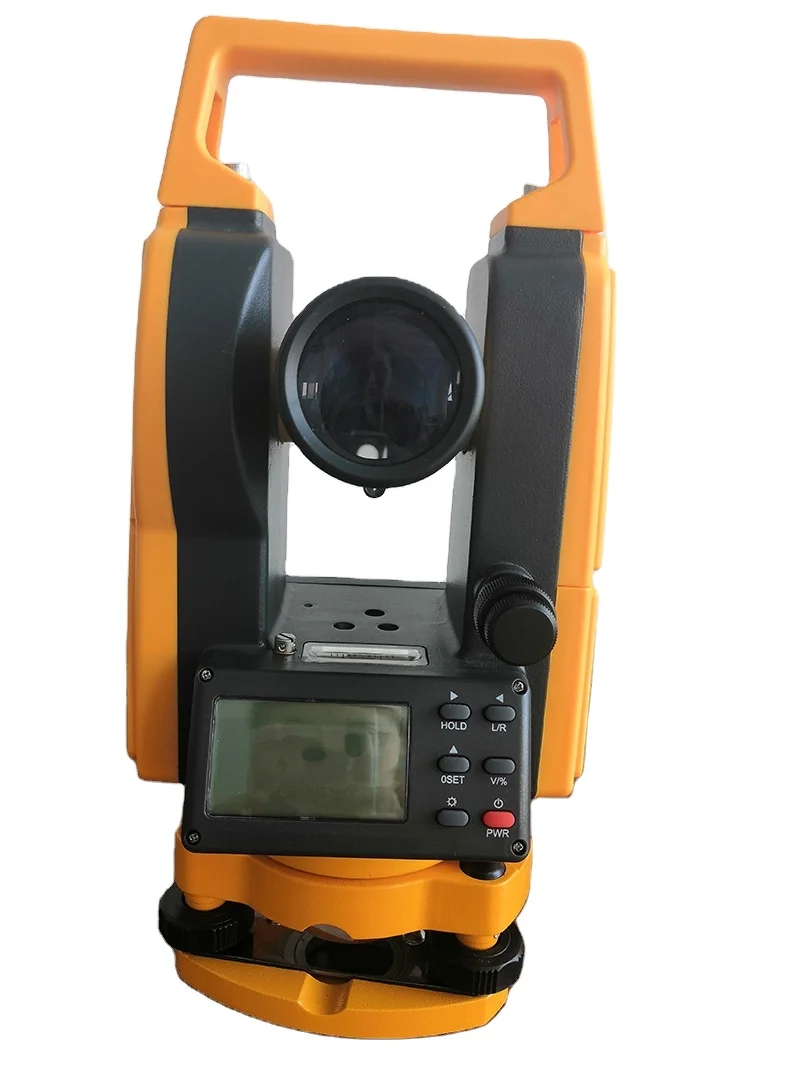

高精度数字电子激光光学经纬仪
* Plummet 可以是激光或光学
* 电源：可充电锂离子电池/镍氢电池
* 标准服装配有干燥电池盒
* 可充电电池工作时间 24 小时

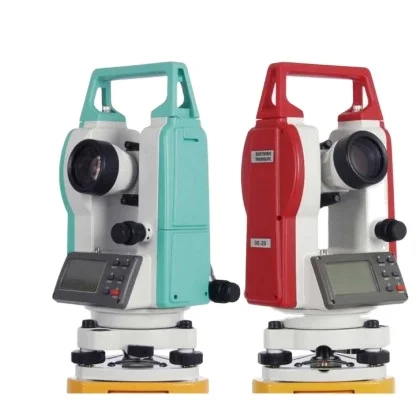

* 颜色选项：绿色、红色、橙红色、黄色
* 净重：4.8kg
Specification
|
Model
|
DE-2B/ DEL-2R/ DEL-2G
|
|
|
|
Telescope
|
Imaging
|
Erect image
|
|
|
|
Magnification
|
30X
|
|
|
|
Objective Aperture
|
45mm(1.7in)
|
|
|
|
Resolution
|
3”
|
|
|
|
Field of view
|
1°30‘
|
|
|
|
Minimum Focusing Distance
|
1.35m(4.43ft)
|
|
|
|
Stadia Multiplication factor/Constant
|
100/0
|
|
|
|
Length
|
155mm
|
|
|
Angle Measurement
|
Measurement Type
|
Absolute Code
|
|
|
|
Display
|
Dual backlit LED
|
|
|
|
Display Units
|
360°锛�400gon, 6400mil
|
|
|
|
Vertical Compensator Working Range
|
±3‘
|
|
|
Optical Plummet(Optional)
|
Magnification
|
3X
|
|
|
|
Field of View
|
5°
|
|
|
|
Focusing Range
|
0.5M-
|
|
|
Laser Pointer and Laser Plummet
|
Laser Range
|
180/250m
|
|
|
|
Wave Length
|
Red 635nm/Green 520M
|
|
|
|
Power
|
5mW
|
|
|
|
Laser Spot Diameter
|
2mm/100m
|
|
|
Bubble Level
|
Cylinder Bubber
|
30”/2MM
|
|
|
|
Cylinder Bubber
|
8’/2MM
|
|
|
Environmental Conditions
|
Operating Temperature
|
-20°Cto 50°C
|
|
|
Power
|
Rechargeable Battery
|
Li-ion 7.4v 1650mAH
|
|
|
Weigth
|
Weight including battery and Tribrach
|
4.8kg
|
|
Company Profile
Mount Laser is a leading manufacturer, engaged in design and development,production of surveying instrument and
accessories,construction, GPS & GNSS industries.
The company was established in 1999,located in Changzhou, 200km away from Shanghai.With over 8000 square meters and over 100 employees. Factory have a complete product line of die casting processing,machining processing, injection molding, precision optical cold processing assembly, painting and finial assembly and testing.
accessories,construction, GPS & GNSS industries.
The company was established in 1999,located in Changzhou, 200km away from Shanghai.With over 8000 square meters and over 100 employees. Factory have a complete product line of die casting processing,machining processing, injection molding, precision optical cold processing assembly, painting and finial assembly and testing.
At Mount Laser we pride ourselves on producing quality items at an affordable price. With 85% of the products enter into
international market. Keep the quality high as the mountain !
