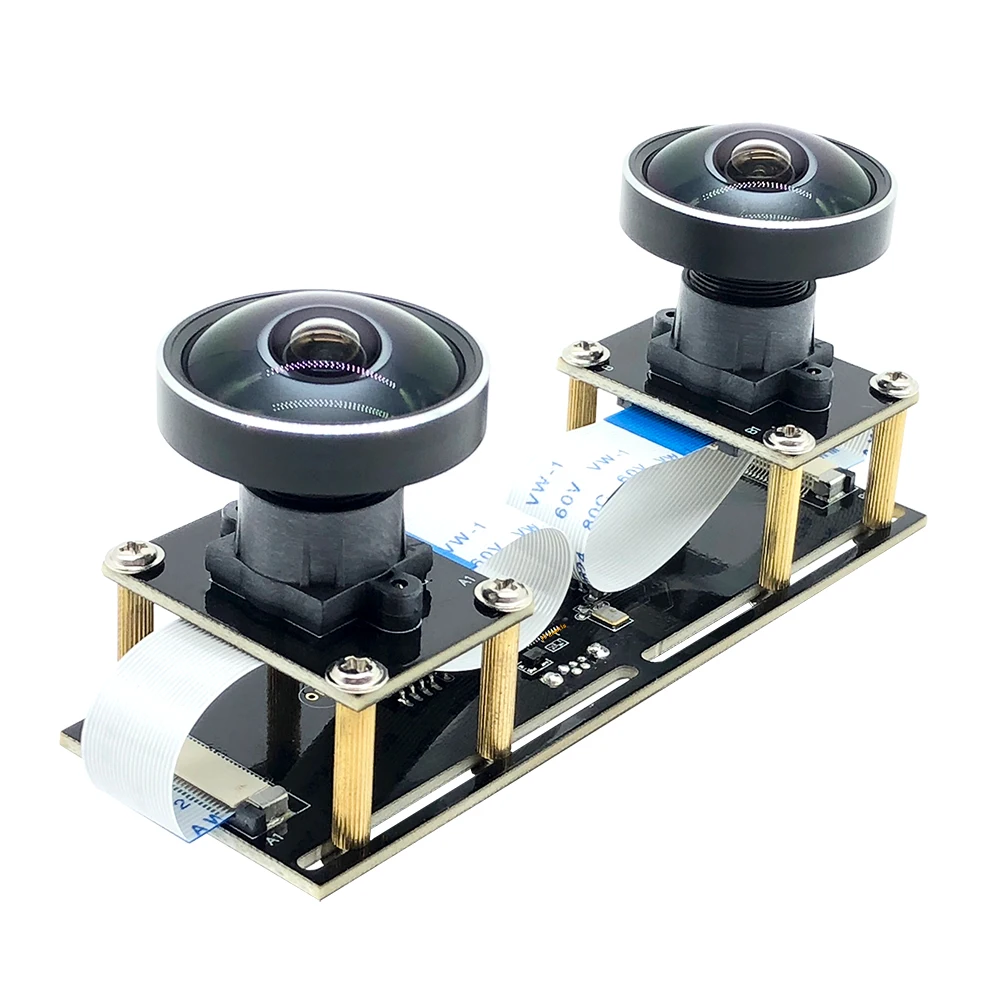

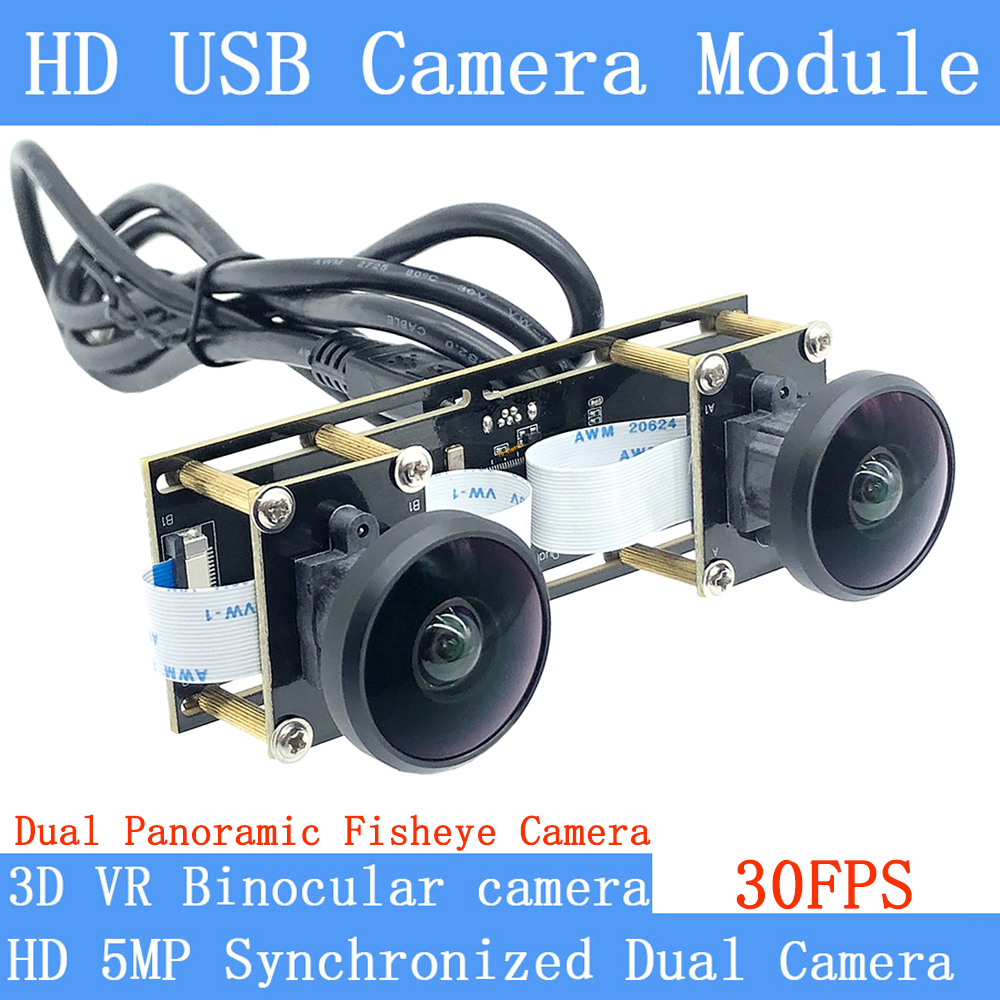

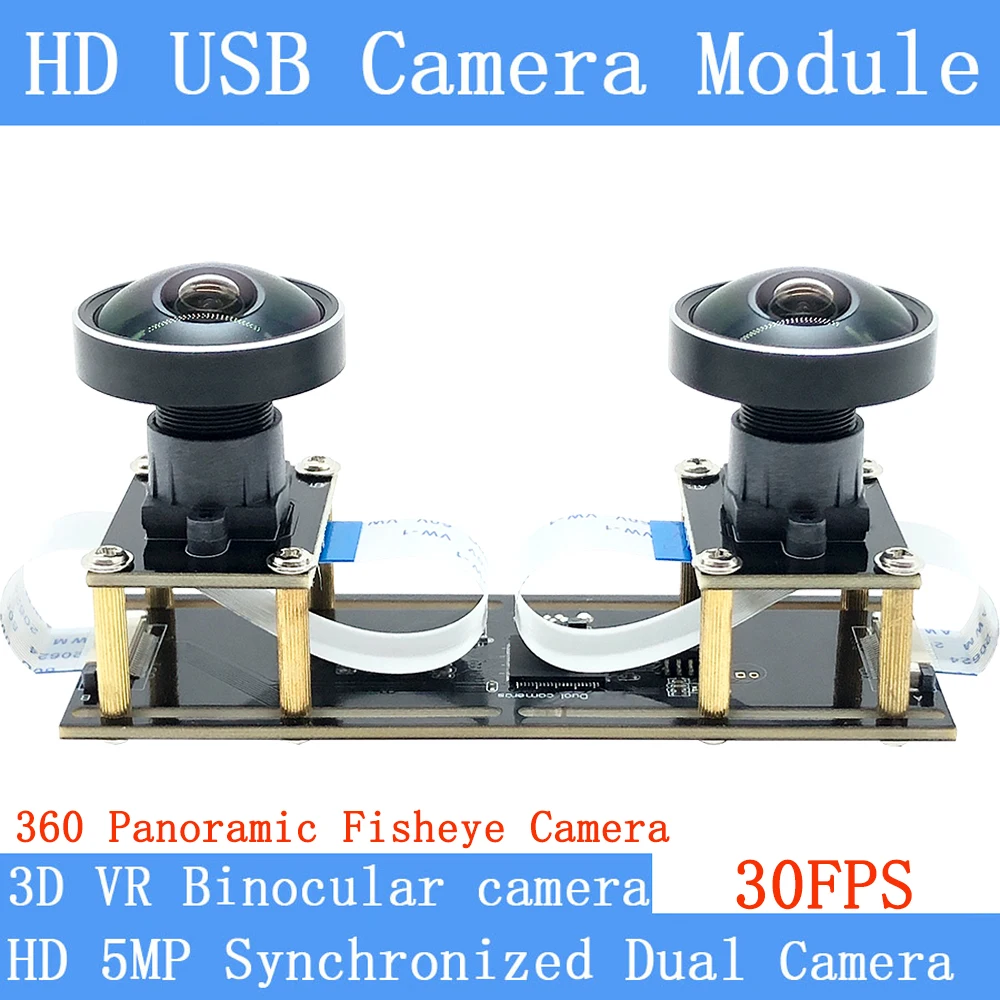

Dual Lens 360° Panoramic Fisheye Binocular Synchronization Stereo 1080P Webcam 5MP USB Camera Module For 3D VR Virtual Reality

(%)
View Cart
Product Details
5MP Binocular high speed Cateye Panoramic Fisheye Camera 30FPS USB camera module 3040*1080 Surveillance camera
Our company has been persisting in the tenet of credibility based, customers supreme, and quality guaranteed, to provide the best services to you through our utmost efforts!
We promise: the same to you the quality our price is optimal, same price our quality is the most guarantee!
Factory direct sales of goods are definitely value for money!
Synchronization 5Megapixel HD 1080P Stereo USB2.0 Camera Module with Flexible Cable
Synchronization technology
High speed USB 2.0 interface
High quality image
Low power consumption
Small outline for embedded application
UVC compliance for use in OS Windows, Linux, Android, Mac
OTG support

1: ATM,Kiosk,POS,TV box      2: advertising cameras      3: one camera      4: Smart TV built-in camera     5: Construction Equipment
6: Banking equipment       7: body switch     8: Scanner     9: a mobile terminal device      10: Medical diagnostic image acquisition
11: fingerprints, palm prints image acquisition     12:video door phone      13:HD surveillance
1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!
2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.
3: This product is equipped with a USB cable.

Photoreceptor: 1/3.OV4689
The highest effective pixels: 3040 (H) *1080 (V), 3040*720,,3040*480
Sensitivity:1900mV/Lux-sec
Pixel Size:2 m x2 M
Image area:5440 m x 3072 M
The output image format: MJPEG / YUV2 (YUYV)
Camera board assembly technology: SMT (ROSH)
Focus: automatic
Distance: 5CM-100M
Central definition: 1000LW/PH (Center)
Signal to noise ratio (s/n RATION): 39.3dB
Dynamic range: 64.6dB

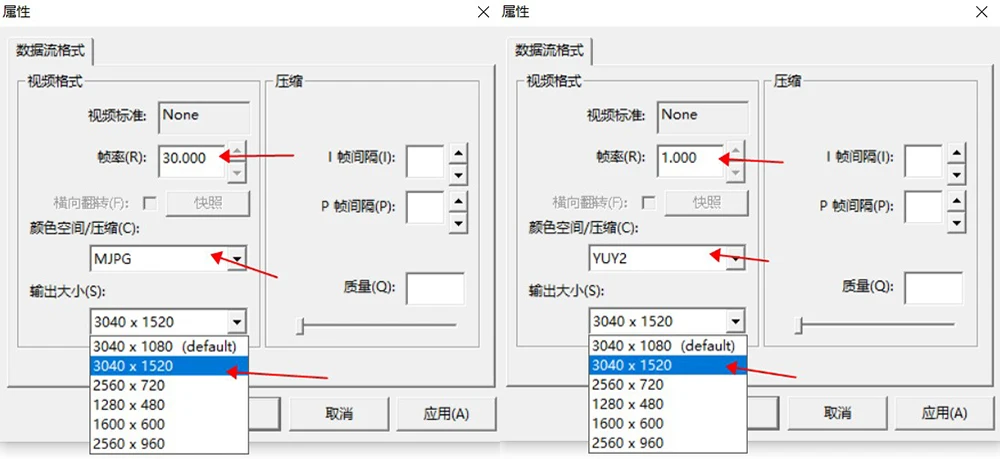

Frame rate:
3040(H)*1080(V)PixelsMJPG30FPS,     YUY2      1FPS
3040(H)*1520(V)PixelsMJPG30FPS, YUY2      1FPS
2560(H)*720(V)PixelsMJPG30FPS, YUY2      1FPS
1280(H)*480(V)PixelsMJPG30FPS, YUY2      5FPS
2560(H)*960(V)PixelsMJPG30FPS, YUY2      1FPS
1600(H)*600(V)PixelsMJPG30FPS, YUY2      3FPS
Shutter type: Electronic rolling shutter / Frame exposure
Interface type: USB2.0 High Speed
AEC: support for automatic exposure control
Automatic white balance AEB support
Automatic gain control AGC support

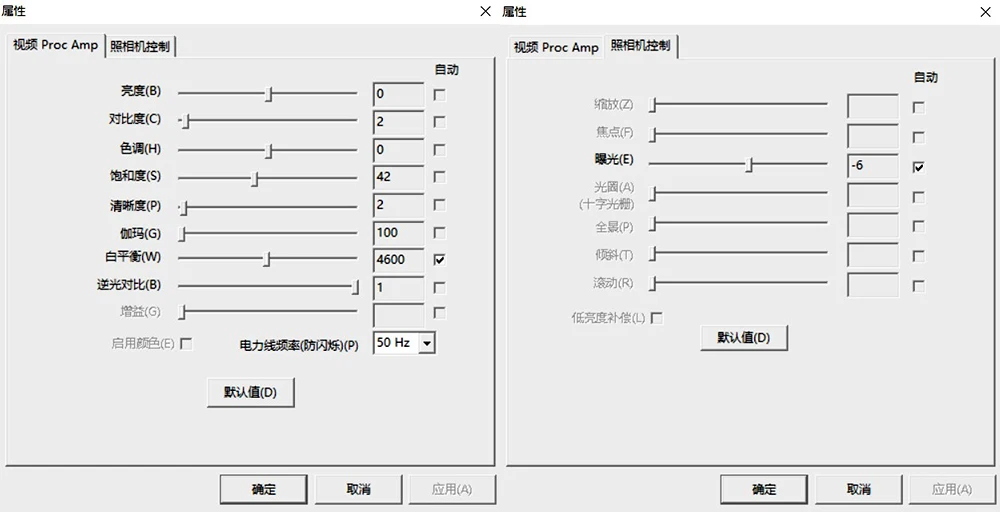

Can adjust the exposure parameters of brightness and contrast color saturation color resolution gamma white balance negative contrast
Size: 1/3 lens specifications, Relative Illumination (Sensor): 70%
Infrared filter: 650 + 10nm
Power supply interface: USB BUS and POWER 4P-2.0mm socket
Voltage: DC5V
Current: 170mW (1280*480); 180mW (2560*960);
Size: 900*330mm, the lens can be extended, movable and fixed
Storage temperature: -30 C to 70 degree C
Working temperature: 0 degree C to 60 degree C
USB wire: 1.2 meter data line, customizable length
Working humidity: 15%-85%
System support: Win XP/Vista/Win7/Win8 / Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4 or above with UVC
Lens: 5MP 1.08MM
Angle(FOV): 190degrees

Item Specifics
Brand Name:
PU`Aimetis
Zoom type:
None
Megapixels:
5 MP
Whether or Not 50Vac or 75Vdc or Higher:
No
Zoom:
NONE
Origin:
Mainland China
High Definition:
4.0 Megapixels
High-concerned chemical:
None
Lens Quantity:
Dual Lens
Supported Operating Systems:
Windows 98
Supported Operating Systems:
Windows 7
Supported Operating Systems:
Windows 8
Supported Operating Systems:
Windows 10
Lens (mm):
1.44 MM
Power Supply:
Normal
Style:
Mini Camera
Connectivity:
Closed System/CCTV Wired
Installation:
Normal
Minimum Illumination(Lux):
190
Scene:
Indoor and outdoor
Internal Storage:
None
Video Compression Format:
MJPEG
IR Distance(m):
5M
Certification:
CE
Certification:
RoHS
Alarm Type:
Local Alarm
Dimensions (L x W x D)(mm):
90mm *32mm*30mm*22mm
Color:
black
Power Mode:
Mains Electricity
Movement Range(Tilt):
Other
is_customized:
Yes
Model Number:
Pu-S895009
Supported Mobile Systems:
Android
Optical Zoom:
NONE
AI Functions:
Other
IP Rating:
Other
App name:
Other
TF Card:
None
Power Supply(V):
5V
Rechargeable Battery Capability:
Other
Audio Output:
None
Power Consumption(W):
80MA
Sensor:
CMOS
Sensor Brand:
Omnivision
Operating Temperature:
-10°-60°
Viewing Angle:
360°
Movement Range(Pan):
Other
Rechargeable Battery:
NONE
Power Source:
Normal
Category usb camera:
Maximum resolution: 3040 (H) *1080 (V), 3040*720,3040*480
Sensor pixels 500W:
Sensor Type: CMOS
Frame rate 30FPS:
Interface: USB2.0
Connection method:
USB interface
