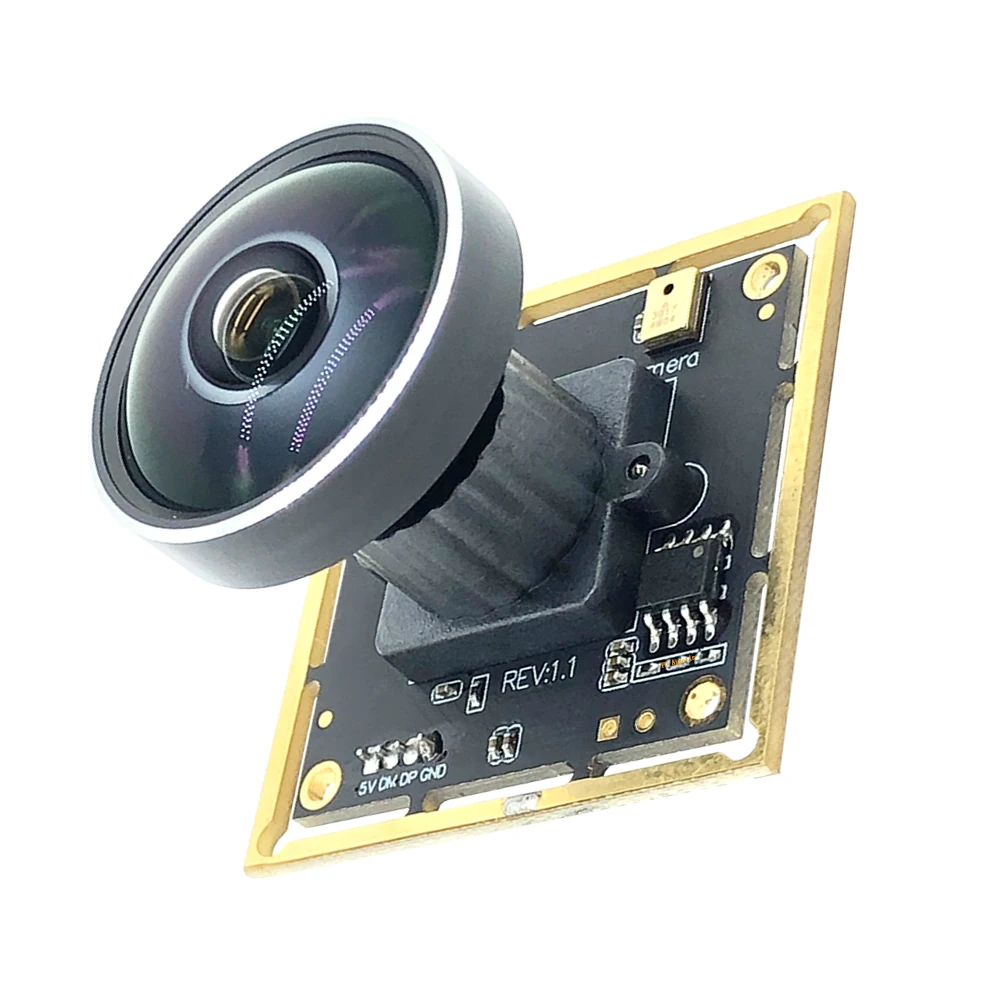

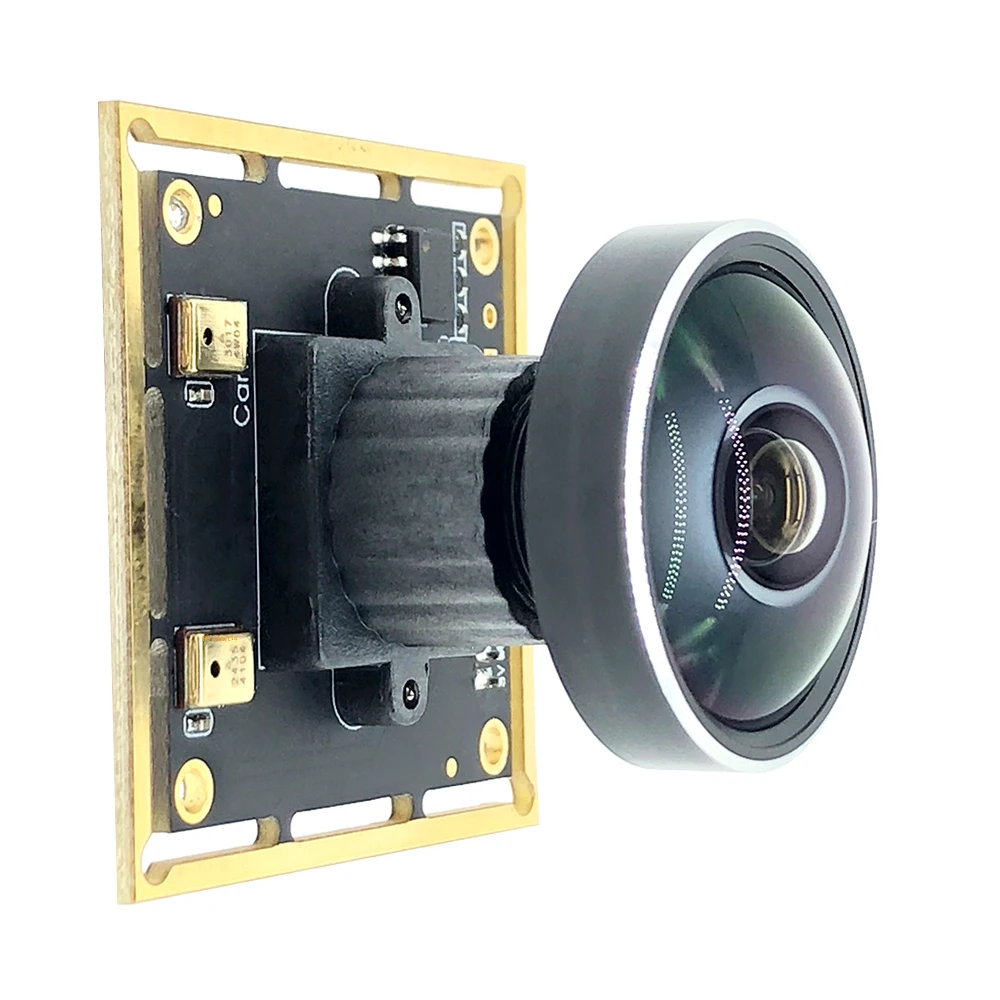

Plug Play 1300W 360° Panoramic Fisheye Webcam CCTV High Resolution 4K 3840×2880 IMX377 UVC Driver 30fps USB Camera Module

(%)
View Cart
Product Details

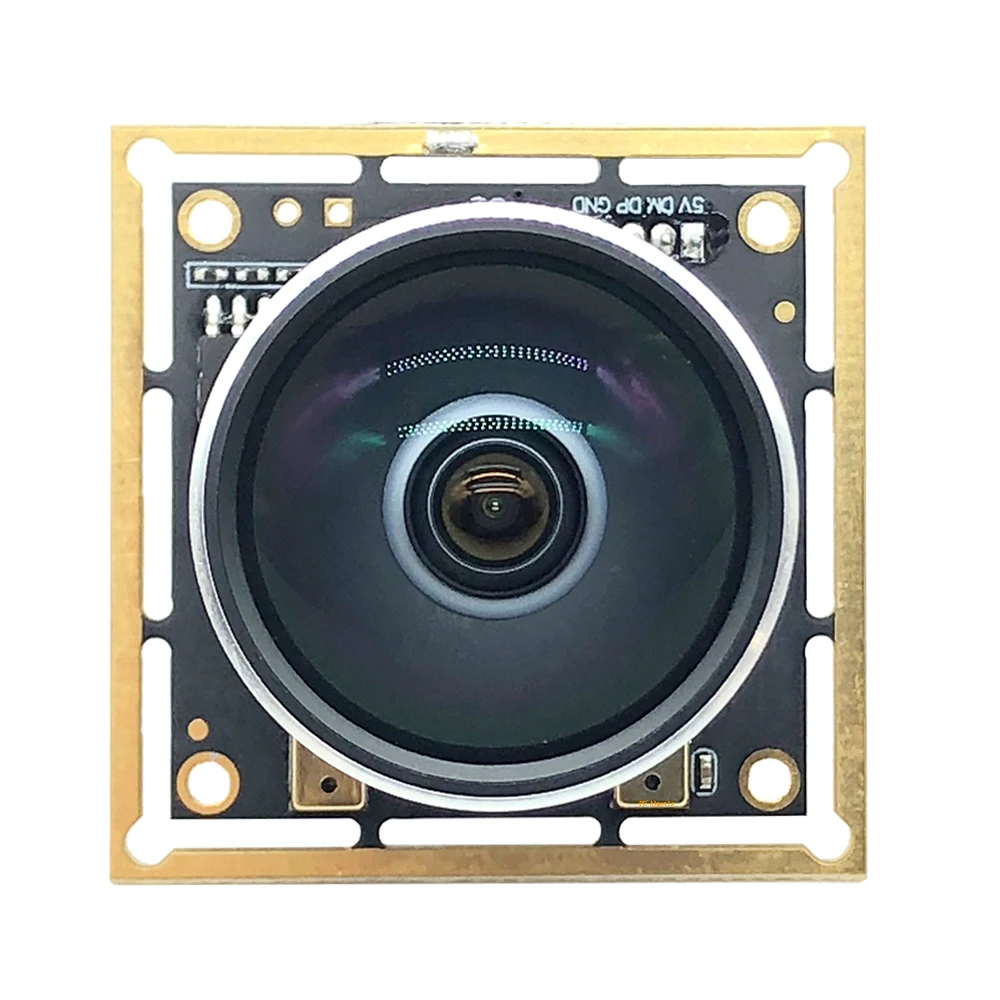

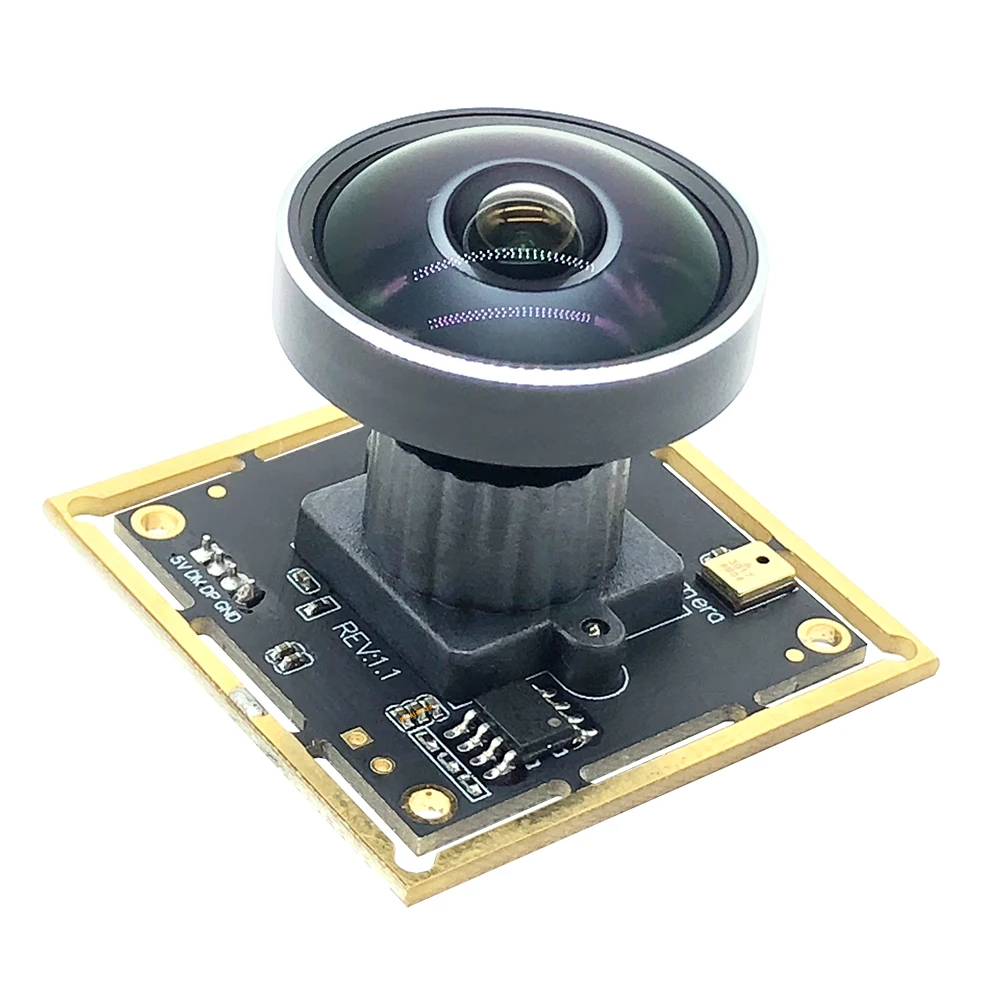

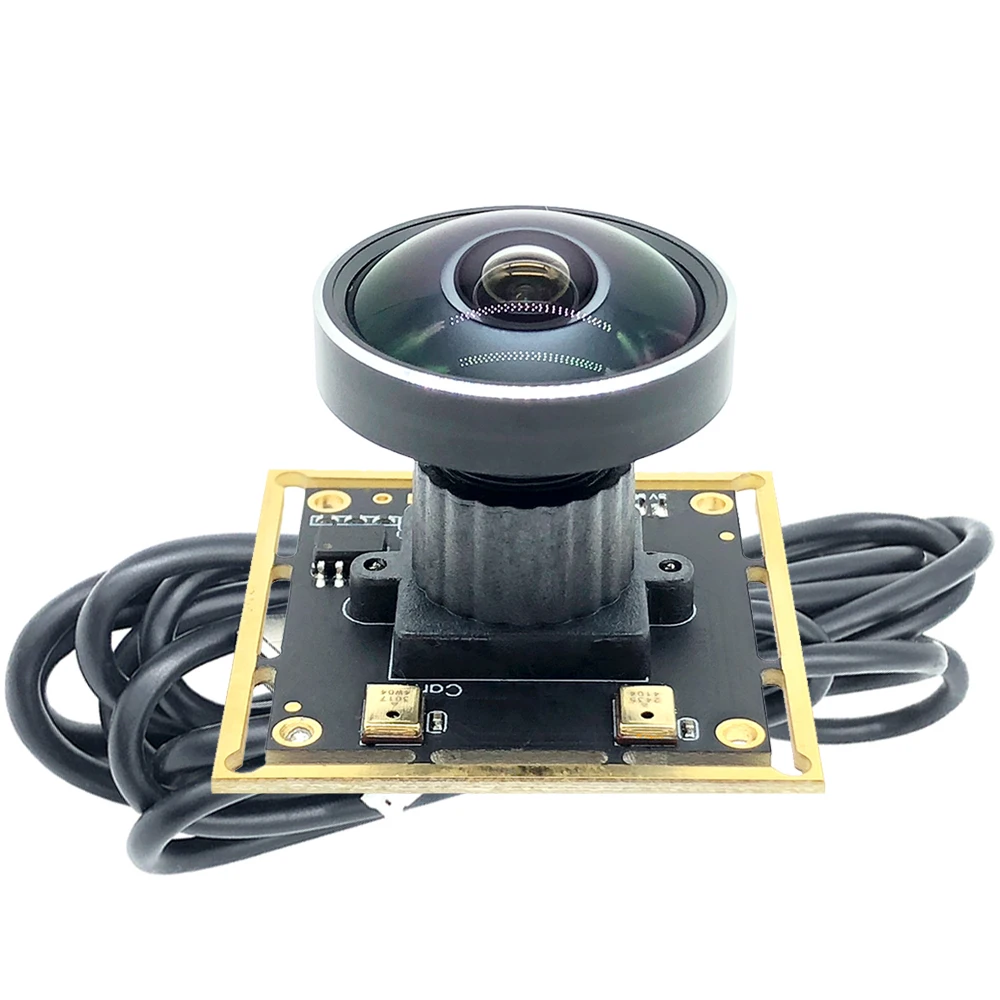

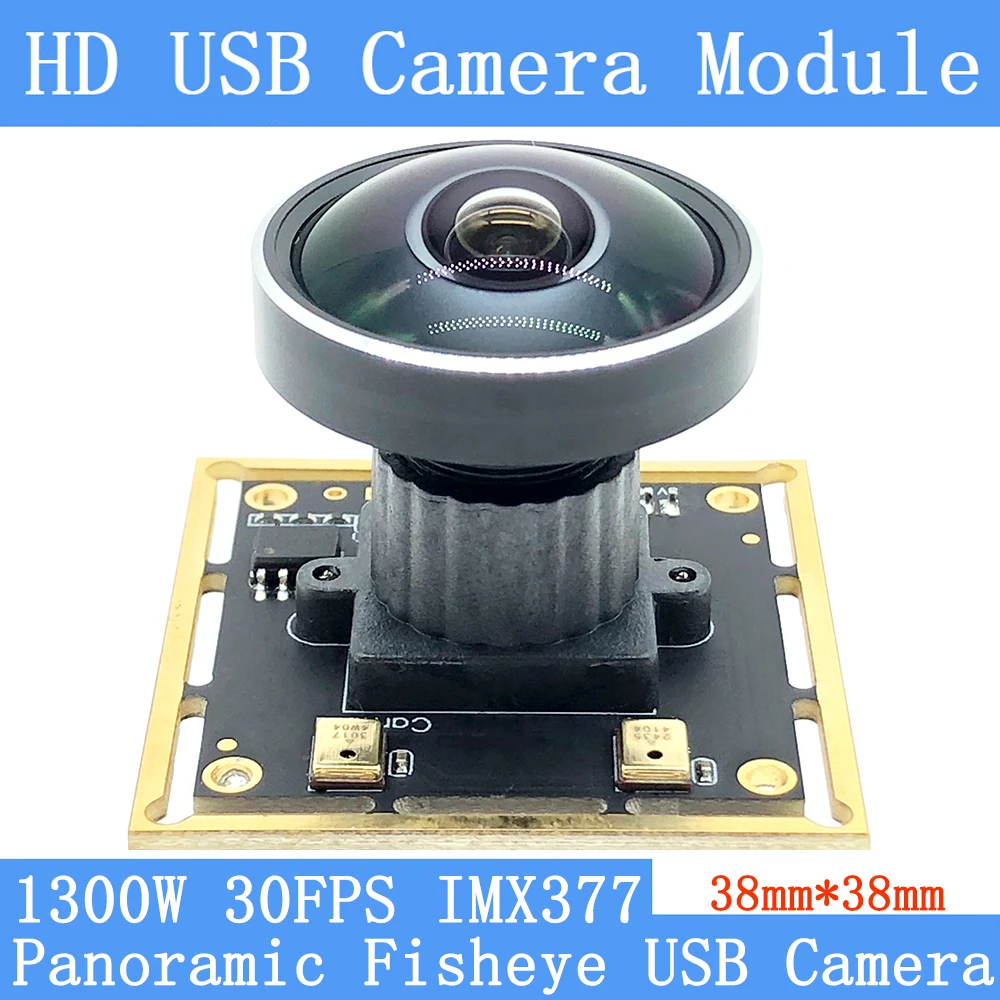

Plug Play 1300W 360° Panoramic Fisheye Webcam CCTV High Resolution 4K 3840×2880 IMX377 UVC Driver 30fps USB Camera Module

Our company has been persisting in the tenet of credibility based, customers supreme, and quality guaranteed, to provide thebest services to you through our utmost efforts!
We promise: the same to you the quality our price is optimal, same price our quality is the most guarantee!
Factory direct sales of goods are definitely value for money!

*1300W Full HD 4K  USB Camera Module with Microphone
*High Speed 4K HD USB Camera*8MP Panoramic Fisheye lens
*CMOS 1080P sensor for high quality  sharp image .
*High speed USB 2.0 interface for high resolution PC camera interface.
*Super small outline and thin profile for embedded applications
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC
1: ATM,Kiosk,POS,TV box2: advertising cameras3: one camera4: Smart TV built-in camera
5: Construction Equipment6: Banking equipment7: body switch8: Scanner
9: a mobile terminal device10: Medical diagnostic image acquisition11: fingerprints, palm prints image acquisition
12:video door phone13:HD surveillance

Model:Pu-I31750009
Chip:IMX317
Most effective pixel:3840(H) *2160 (V)
Pixel Size:1.62µm x1.62µm
Output image format:MJPEG / YUV2

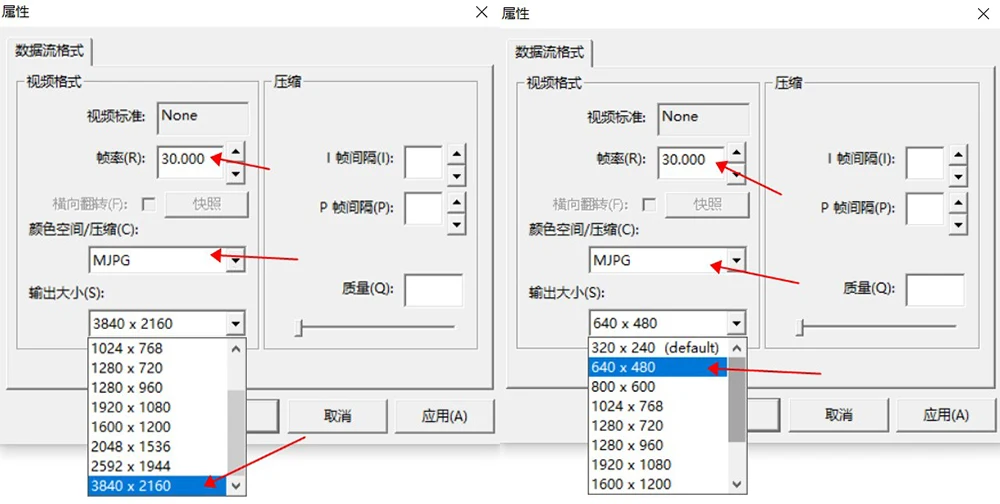

Frame rate:
320 (H)x240 (V) pixels         MJPEG 30FPS         YUY2  30FPS
640 (H)x480 (V) pixels         MJPEG 30FPS         YUY2  30FPS
800 (H)x600 (V) pixels         MJPEG 30FPS         YUY2  20FPS
1024 (H)x768 (V) pixels       MJPEG 30FPS         YUY2  5FPS
1280 (H)x720 (V) pixels       MJPEG 30FPS         YUY2  5FPS
1280 (H)x960 (V) pixels       MJPEG 30FPS         YUY2  5FPS
1600 (H)x1200 (V) pixels     MJPEG 30FPS         YUY2  3FPS
1920(H)x1080 (V) pixels      MJPEG 30FPS         YUY2  3FPS
2048(H)x1536 (V) pixels      MJPEG 30FPS         YUY2  3FPS
2592(H) x1944 (V) pixels     MJPEG 30FPS         YUY2  1FPS
3840(H)x2160 (V) pixels      MJPEG 30FPS         YUY2  1FPS

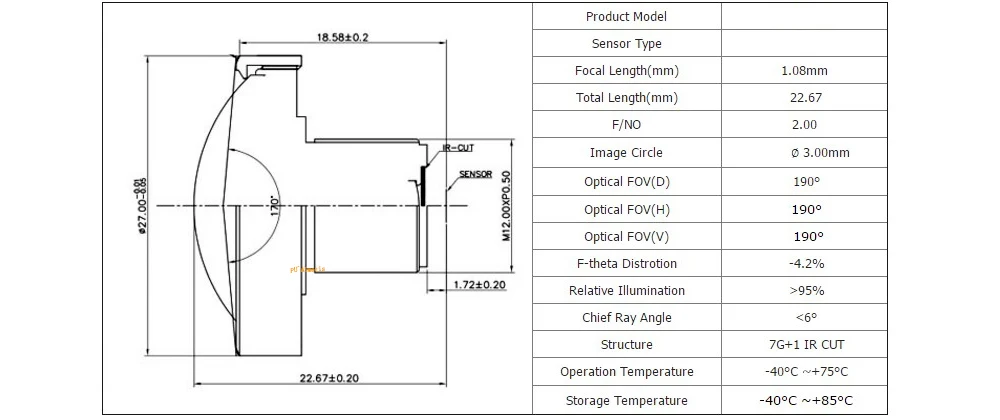

Lens(Angle):190°  Lens
Focusing:Manual
Object distance:5CM-100M(Distance can be adjusted according to customer requirements)
Auto white blance AEB:Support
Auto exposure AEC:support
Automatic Gain Control AGC:support
Microphone:support
USB cable:1M
s/n  RATION:TDB
Dynamic Range:TDB
Shutter type:Electronic rolling shutter / Frame exposure
Interface type:USB2.0 High Speed

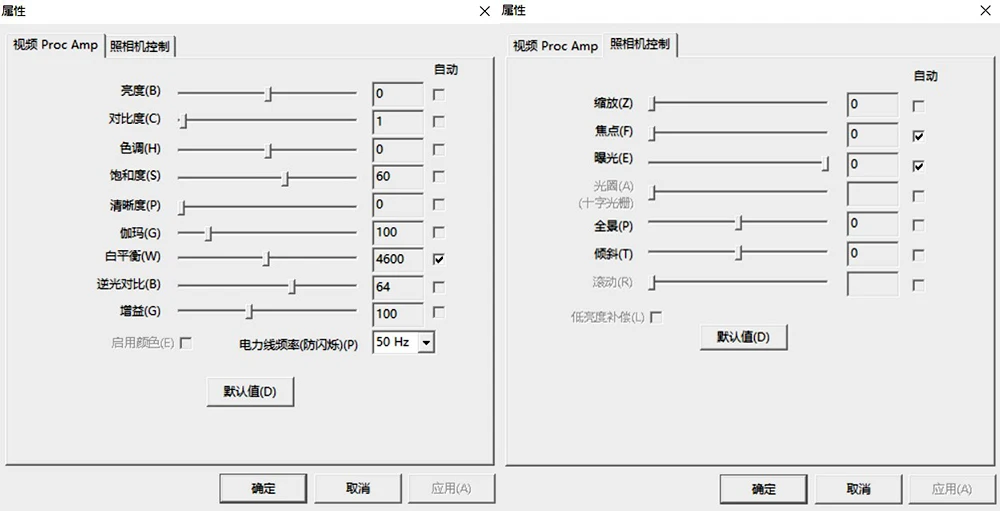

Adjustable parameters:Brightness, contrast, color saturation, hue, sharpness, gamma, white balance, backlight contrast, exposure
Shape dimension:38mm*38mm, The height varies according to the lens
Power supply and interface:USB BUS POWER  4P-2.0mmSocket
Voltage:DC5V
Electric current:100-150mW (VGA)
Storage temperature:-30°C to 70°C
working temperature:-10°C to 60°C
Working humidity:15%-85%
System support:Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)WIN10MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC

Item Specifics
Brand Name:
PU`Aimetis
Zoom type:
None
Megapixels:
13mp
Whether or Not 50Vac or 75Vdc or Higher:
No
Zoom:
NONE
Origin:
Mainland China
High Definition:
12.0 Megapixels
High-concerned chemical:
None
Lens Quantity:
Single Lens
Supported Operating Systems:
Windows 7
Supported Operating Systems:
macOS
Supported Operating Systems:
Windows 8
Supported Operating Systems:
Windows 10
Supported Operating Systems:
Windows 2008
Lens (mm):
1.44 MM
Power Supply:
Normal
Style:
Mini Camera
Connectivity:
Closed System/CCTV Wired
Installation:
Normal
Minimum Illumination(Lux):
360
Scene:
Indoor and outdoor
Special Features:
USB Camera module
Internal Storage:
None
Video Compression Format:
MJPEG
IR Distance(m):
5M
Certification:
CE
Certification:
RoHS
Alarm Type:
Local Alarm
Dimensions (L x W x D)(mm):
38mm*38mm
Color:
black
Movement Range(Tilt):
Other
is_customized:
Yes
Model Number:
Pu-I3175009
Supported Mobile Systems:
Android
Optical Zoom:
NONE
IP Rating:
Other
TF Card:
None
Power Supply(V):
5V
Camera Stabilization:
NONE
Rechargeable Battery Capability:
Other
Audio Output:
USB
Power Consumption(W):
80MA
Sensor:
CMOS
Sensor Brand:
Sony
Operating Temperature:
-10°-60°
Viewing Angle:
360°
Movement Range(Pan):
Other
Rechargeable Battery:
NONE
Power Source:
Normal
Category usb camera:
Maximum resolution: 3840x2160 30FPS
Sensor pixels 4K:
Sensor Type: CMOS
Frame rate 30FPS:
Interface: USB2.0
Compression FormatMJPEG:
Support OS:Windows, Linux, Android,
Connection method:
USB interface
