RTU5035
The GSM Gate Opener RTU5035 is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipments, car parking systems. Actually the GSM Gate Opener RTU5035 can be used in places which require turning ON/OFF your system, machines, equipments remotely with a FREE call from your mobile phone and protect your assets.
Specifications:
Rated Voltage: 12VDC 1 A
Working temperature: -10℃～+60℃
Storage temperature: -20℃～+60℃
Relative humidity: 10-90%, No condensation
Work frequency: 900/1800MHz
Communication protocol: GSM PHASE 2/2+ (include data service)
Wired Zones: 2
Signal: 2G/3G/4G
Related Voltage of the Output Relay: 6A/240V AC
Features:
1.No call charges. The GSM Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action on the first ‘ring;
2.It is no longer traditional to open the door, but it is more interesting to open the door by shaking it.
3.Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
4.Secure – Using caller ID for identification, unknown callers are ignored;
5.Can be operated from anywhere, no distance limit;
6.Add or remove users by SMS Text command;
7.No need to provide a remote control for different users;
8. Up to 999 authorized phone numbers can be configured;
9.Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows, when any one of them triggered, will send SMS alert message and start the siren immediately;
10.One output with relay rating 6A/240VAC for connecting the switch of the door or machines;
11.The relay action will return a SMS confirmation to the owner, this function is editable by user;
12.Based on GSM Network, applied to many applications.
13.Adding 2 wired probes to edit alarm information and connect door magnetic smoke alarm.
Attention:
Applicable countries: Europe, Africa, most Asian countries (Not applicable to Japan, Korea, Australia, Singapore, New Zealand). Countries that support the 900/1800Mhz band are applicable.
Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener. There are no call costs, the GSM Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.
Moreover, the RTU5035 with 2 digital inputs for digital inputs, when any one of the inputs triggered, will start the siren or switch on the light, in the meanwhile, the RTU5035 will send SMS Alert the to owners immediately. This is very useful if you need protect your assets with low cost solution.
Package Included:
1 x RTU5035 GSM Gate Opener
1 x Good Gain Antenna
1 x Card Pin

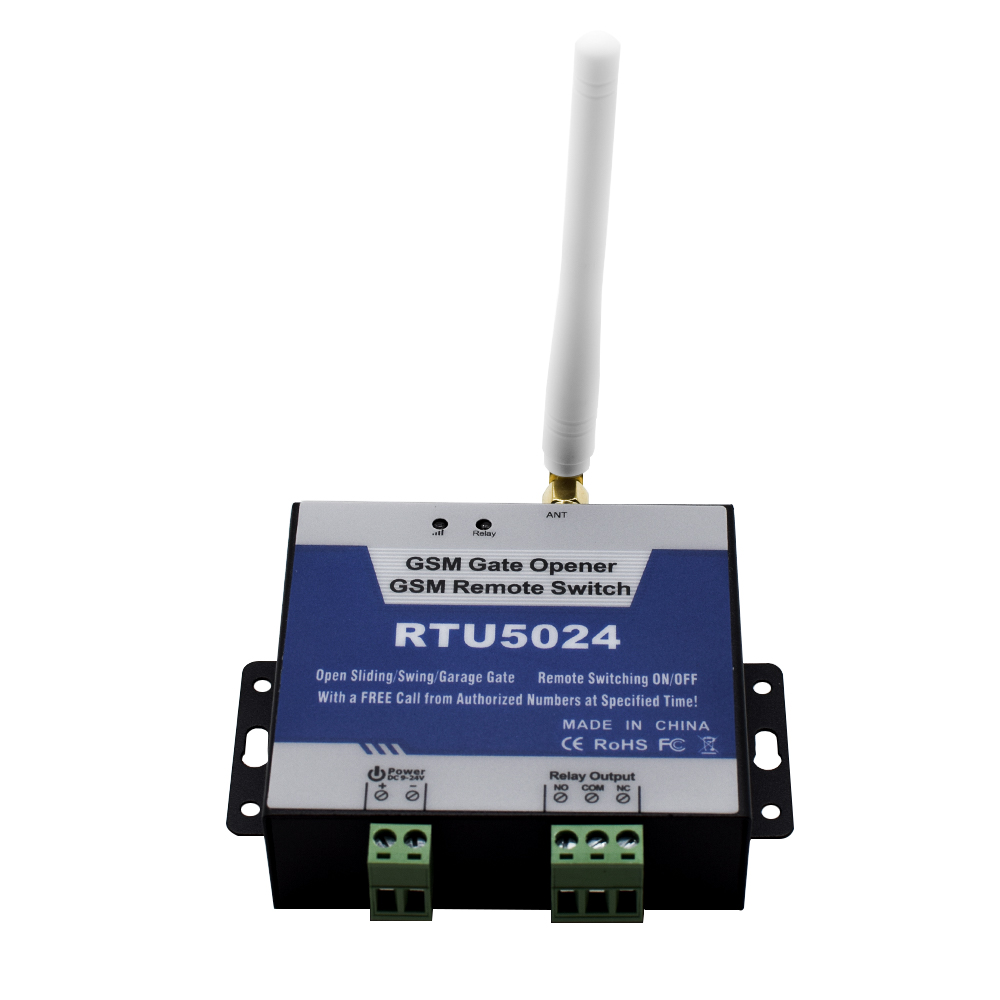

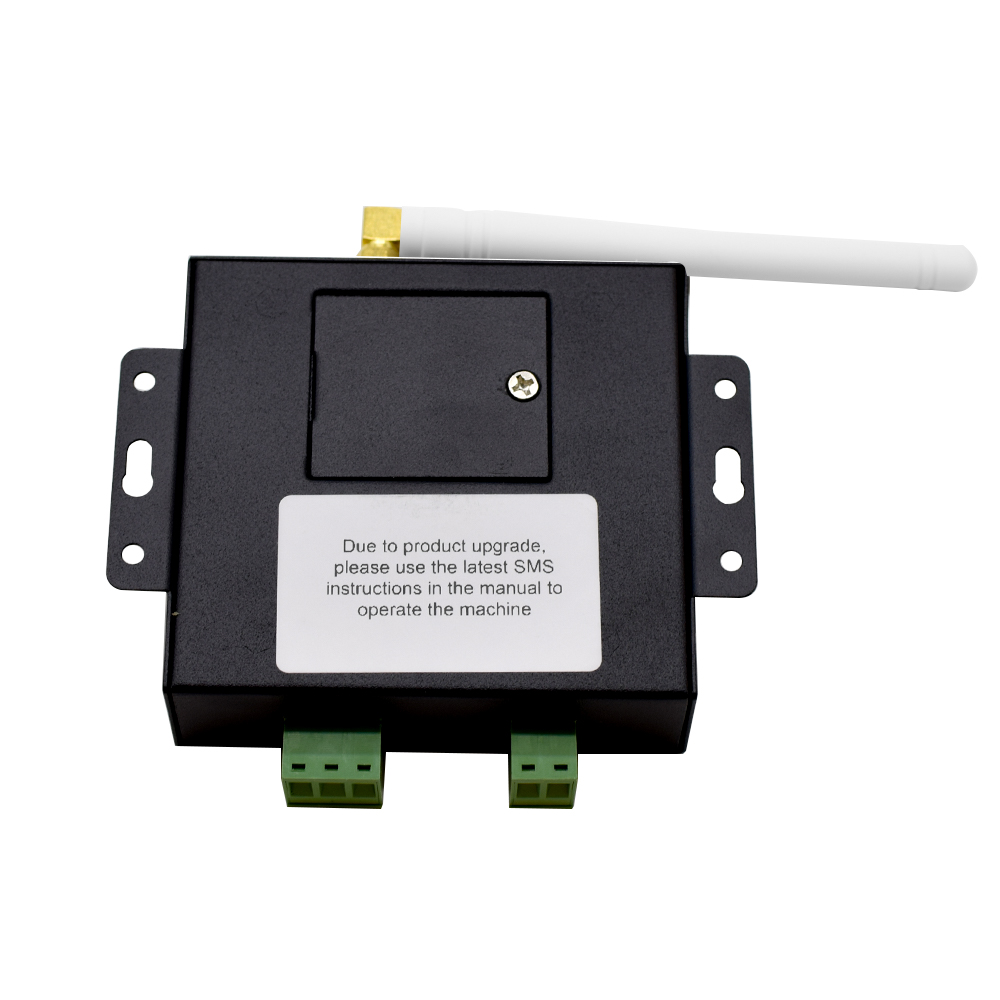

RTU5024
The GSM Gate Opener RTU5024 is a powerful GSM relay that can be used for authorized door access, controlling gates, switching of remote equipment, and car parking systems. Additionally, it can also be used in places which require you to turn on/off your system, machines, or equipment remotely with a free call from your mobile phone.
Specifications:
GSM Frequency: Quad-band 850/900/1800/1900MHz
Gigital Output: NC/NO dry contact, 3A/240VAC
DC Power Supply: 9-24VDC/2A
Power Consumption: 12V Input Max.50mA/Average 25mA
SIM Card: Support 3V SIM Card
Antenna: 50Ω SMA Antenna Interface
Temperature Range: -20～+60℃
Humidity Range: Ralative Humidity 90%
Exterior Dimension: W82mm*D76mm*H27mm
Features:
– Add or remove users by SMS Text com mand.
– The relay close or open time is programmable.
– Can be operated from anywhere, no distance limit.
– Quad-band, can work in the worldwide GSM Networks.
– No need to provide a remote control or keys for different users.
– Secure – Using caller-ID for identification, unknown callers are ignored.
– Up to 200 authorized phone numbers can be configured at the specified time.
– One output with relay rating 3A/240VAC for connecting the switch of the door or machines.
– Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines).
– The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user.
– No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first ‘ring’.
Package Included:
1 x RTU5024 GSM Gate Opener
1 x Good Gain Antenna
