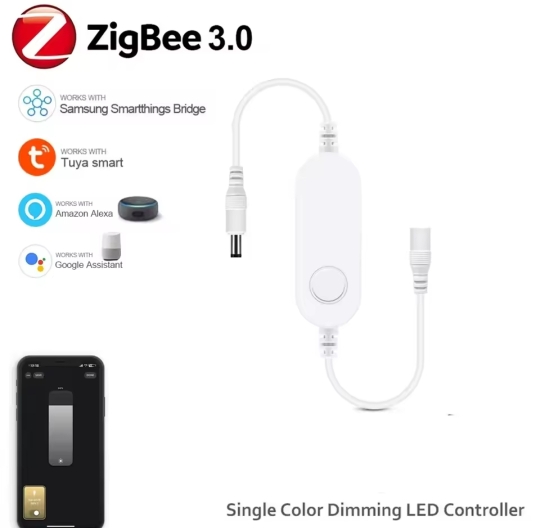

Zigbee 3.0 Smart LED Controller DC5V 12V 24V Dimmer Single color CCT RGB RGBW RGBCCT LED Strip for Tuya Alexa SmartThings 2mqtt

148 reviews
(%)
View Cart
Product Details

Note:

1. ZigBee hub is required!

2. work with zigbee,Tuya Zigbee,Amazon ECHO Plus , O*sr*am,SmartThings, Home Assistant , Zigbee2MQTT ….Support voice control Alice,Alexa,google home.

3. Match method: long press the button until the led gradient flicker,or take on off the power 5 times.


4. CCT color order is +C X W ,RGBCCT color order is + G R B W C ,you need check your light first.

ZIGEBB LED Controller:

Support 5V-24V input, maximum current 5A dual output
This new generation of Single color dimming /CCT/RGBW/RGBCCT controller
works with the ZigBee 3.0 standard and is therefore compatible with
many common ZigBee hubs/gateways,
With this controller all common
types of LED products operating on 5-24V Volt basis can be controlled.
This makes it suitable for LED strips, LED mounting beams, LED outdoor
or pool lighting.
RGB CCT Wirelessly dimmable.
16 Millions of colors to choose.
Voice control, Smartphone APP control.
Please kindly note that our zigbee devices require related gateways.

Specification:

Model No.:YSR-MINI-Z01
Voltage: DC5V-24V
Output: Max. 3A/Channel, Total output Max.5A
Product Name:ZIGBEE Strip Controller(Dimmer/CCT/RGB/RGBW/RGBCW)

 Size:28*24*11.5mm
Weight: 50g
Operating Temperature:-20-60°
USB cable length : 0.5M
Support mobile: Android/IOS

Note: 1. 6PIN RGBCCT Controller Needle Pitch is 2mm,width is 12mm.check your led strip connector.
2. DC dimmer connector size is 5.5mm*2.1mm.

Package

1pcs* Zigbee LED Controller





Item Specifics
Brand Name:
YSRSAI
Origin:
Mainland China
High-concerned chemical:
None
Item Type:
RGB controler
Material:
ABS
Warranty:
1year
Certification:
CCC
Certification:
ce
Certification:
GS
Certification:
UL
Connection Mode:
zigbee
Power Source:
DC
Wattage:
5A
Voltage:
5-24V
Model Number:
RGB RGBCCT
Remote Distance:
30m
Controled Method:
app/voice
Features:
smart
Applicable Lights:
5050
Max. Load Power:
5A
Type:
Zigbee led controller
Color:
White
Model:
Single color/CCT/RGB/RGBW/RGBCCT
For LED Light:
5050 3528 5630 COB
voltage:
DC5V 12V 24V
Size:
64*24*12mm
Feature:
Need work with zigbee gateway
Feature 2:
Work with tuya zigbee
Feature 3:
Work with Z2mqtt
Feature 4:
Work with Smartthings
Feature 5:
Work with Alice/Alexa/Home assistant
Choice:
yes
Reviews
(148)
Write a Review
Verified Buyer
A***s
25 Nov 2025 00:00

Works great and setup is straightforward. Good for the price

Verified Buyer
l***n
24 Nov 2025 00:00

Nice color. Works well as expected. Will buy again. Fast shipping.

Verified Buyer
Customer
22 Nov 2025 00:00

Todo Ok. Pte de probar.

Verified Buyer
F***a
22 Nov 2025 00:00

muito bom

Verified Buyer
A***r
21 Nov 2025 00:00

Das Gerät funktioniert einwandfrei und ließ sich problemlos via Z2M in Homeassistant einbinden. Habe es als Ersatz für eine defekte WiFi-Version gekauft und bin sehr zufrieden damit. Von mir eine klare Kaufempfehlung. Artikel kam nach einer Woche in DE an.

Verified Buyer
A***a
20 Nov 2025 00:00

app ewelink work 💪

Verified Buyer
A***s
20 Nov 2025 00:00

alles bestens

Verified Buyer
L***k
20 Nov 2025 00:00

kompatibilní s ewelink

Verified Buyer
Customer
19 Nov 2025 00:00

Se conectó directamente a ZigBee2mqtt sin tener que hacer ninguna configuración extra. Se controla perfectamente desde home assistant. He comprado más. 100% recomendable

Verified Buyer
A***m
19 Nov 2025 00:00

Schneller Versand, gute Qualität, absolut empfehlenswert!

Verified Buyer
P***k
15 Nov 2025 00:00

Working great with Z2M. Super reliable. Recommended.

Verified Buyer
J***r
15 Nov 2025 00:00

Leider nur mit ein hub verwendbar trotzdem geht's gut :)

Verified Buyer
M***ć
14 Nov 2025 00:00

Alread bought 5pcs.Very setisfy.Best for the price.

Verified Buyer
Customer
13 Nov 2025 00:00

В Україну посилка приїхала за 11 днів

Verified Buyer
A***k
11 Nov 2025 00:00

fa il suo lavro, si connette senza problemi a Home Assistant con mosquitto

Verified Buyer
W***d
10 Nov 2025 00:00

працює, все ок

Verified Buyer
Customer
8 Nov 2025 00:00

LED바구매할때 모션센서가 적용된 제품을 구매해서 지그비방식을 다시 구매할려고 보던중 이제품을 발견하고 구매했습니다 2개모두 정상적으로 작동하구요 가격도 저렴하니 너무 만족합니다

Verified Buyer
Customer
6 Nov 2025 00:00

저럼하게 구매했어요 호환도잘되구 상품, 배송 ,가격 모두 만족합니다. 추후또 구매할께요..

Verified Buyer
Customer
3 Nov 2025 00:00

Added to Home Assistant via Z2M - all works great. Not it is easy to dim my non-addressable LED strip.

Verified Buyer
D***n
2 Nov 2025 00:00

Ок. Рабочий

Verified Buyer
Customer
1 Nov 2025 00:00

parfait. transforme un ruban led standard en ruban connecté, tout à fait ce que je cherchais.

Verified Buyer
A***G
31 Oct 2025 00:00

klappt, mehr gibt's glaube ich nicht zu sagen

Verified Buyer
Customer
29 Oct 2025 00:00

This one works perfectly with my hue bridge

Verified Buyer
Customer
28 Oct 2025 00:00

Funcionando perfectamente con ZigBee2mqtt y homme assistant. Se reconoce perfectamente y se puede controlar tanto el encendido/apartado como la luminosidad

Verified Buyer
T***k
28 Oct 2025 00:00

Bardzo dobry sterownik taśmy LED polecam
